dpst red rocker with neon lamp 15A 16A 20A 250VAC 4 pins rocker switch

FOB Reference Price:Get Latest Price
US $0.12-0.28 / Pieces | 50 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
YIWEI

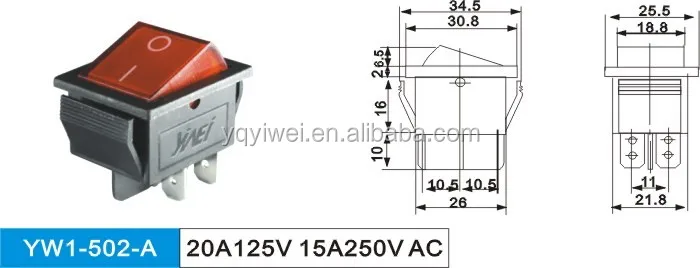

Model Number:
YW1-502-A
Max. Current:
DC20A\10A AC 10A \16A
Max. Voltage:
250VAC
Mechanical Life:
50000 Cycles
Operating Temperature:
-30-+80
Flow Rate:
123
Media Type:
Liquid
SupplyAbility
SupplyAbility:
200000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
50pcs in a box, 1000pcs in a carton
Port
NINGBO
Lead Time :
Shipped in 5 days after payment





Product Description





  • Actuator (non-lighted): Nylon 66 94V-2
    Actuator (lighted):Polycarbonate
    Case:Nylon 66 94V-2
    Spring:Steel Wire
    Contacts:Silver Alloy
    Movable Arm:Silver-Plated Copper Alloy
    Terminals:Tin-Plated Copper Alloy
    SPECIFICATIONS
    Ratings: 20A 125VAC / 16A 250 VAC; 3/4 HP 250VAC (UL, CSA)
    16 (8) A 250V ~, T125 1E4 (VDE)
    Electrical Life at Rated Load10,000 (VDE)
    6,000 (UL)
    Dielectric Strength1000VAC for 1 minute
    Insulation Resistance:10ohms min at 500VDC
    Initial Contact Resistance:.020 ohms max
    Temperature Range:-20°C to +85°C
  • High current rating to 20 amps
  • New style with rounded corners
  • Lighted and non-lighted
  • Maintain-action and momentary
  • Available in a variety of colors
  • Mechanical life: min. 50,000 operations
